PACKAGE CONTENT: 1 - Flat Black "Bandi Mount" for CB Antenna or Flag Mount.

ITEMS NEEDED: a. Masking Tape (or equivalent)

b. Mid size Flat Head Screwdriver (or equivalent)

NOTE: a. If you intend to install a flag, you can skip steps 3 and 6.

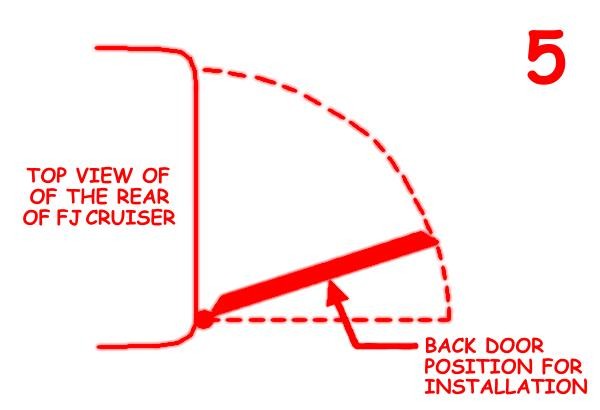

b. Door position during installation should not be in the fully opened. The approx.

position as shown on image "5" should be used.

c. I test fitted every mount on my FJC, so there should be no problems with the fit.

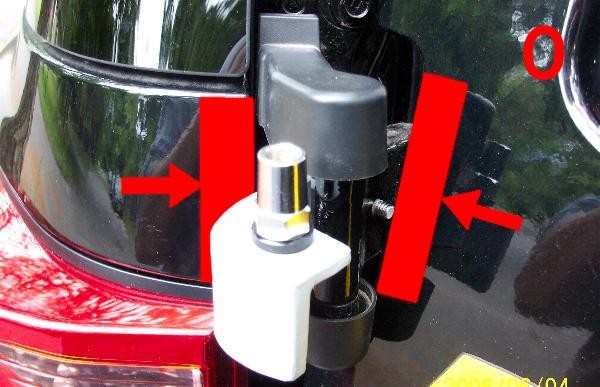

1) Before installing the mount, cover the areas in red on Image "0" with masking tape to

protect the FJC's paint during mount installation. Be sure to fold it over the edges of

the body and the door for maximum protection.

2) First, you need to remove the center plastic hinge cover. This cover is only snapped

on over the hinge. It has two stubs sticking out that slide into the mounting hole shown

on image "2". From inside of the opened door, You need to spread the two halves of

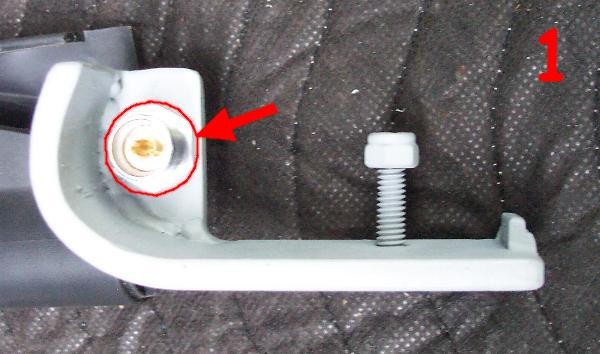

3) For CB Antenna mounting (unless you get a Groundless RV/Marine type Antenna),

there must be a ground contact for best TX/RX of the CB. You will have to remove the

paint on the underside of the mount in the area of contact with the bottom section of

the antenna so that the two pieces make contact to complete the ground. This area

is shown in red on image "1". This can easily be achieved with a mid size flat head

screwdriver, by scraping away the paint from inside the red circle area.

4) Install and tighten your CB Antenna Base connector onto the mount prior to the mount

installation on the vehicle. If done at a later time, you will need a deep socket to hold

the underside of your CB mount to be able to tighten the top part.

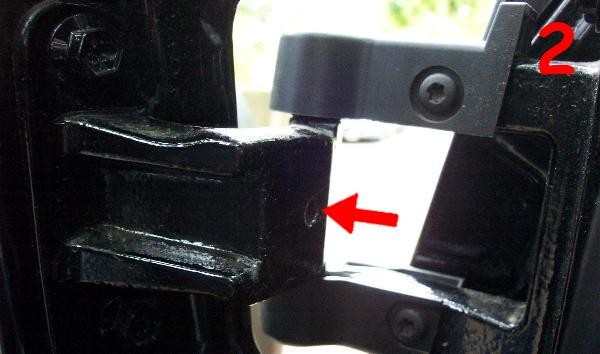

5) Image "2" shows the location of the mounting hole that is already on you FJC's Hinge.

This will be where the mount bolt will go thru when you place the mount in position.

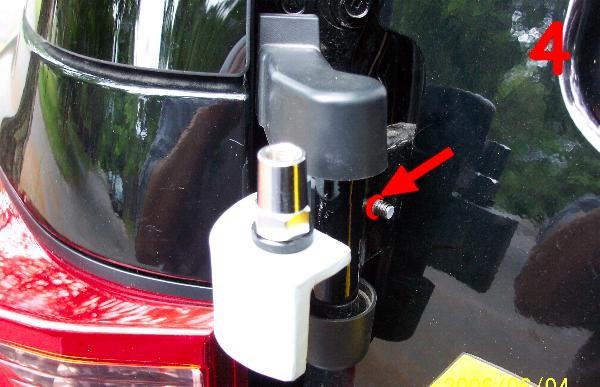

6) As done in step 2, For CB Antenna mounting (unless you get a Groundless RV/Marine

type Antenna), there must be a ground contact for best TX/RX of the CB. You will have

to remove the paint on the hinge where the stainless steel nut (included in your

package) makes contact with the hinge. This area is shown in red on image "4". This

also can easily be achieved with a mid size flat head screwdriver, by scraping away

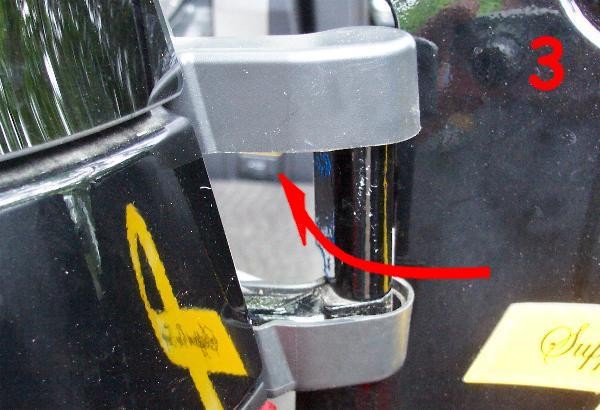

7) With the door in position as shown on image "5", place the mount thru the space as

shown on image "3", and line up the bolt with the hole in the hinge and slide it thru so

that the end of the bolt is flush with the other of the hinge.

8) Place the SS-Nut in the 7/16" open end wrench and slide it over the hole between the

door and the hinge. Now press the mount from the back side and turn the nut to get it

started. Snug up the mount by tightening the SS-Nut, but leaving it loose enough to

adjust the mount to be centered on the hinge.

9) Close the door slowly making sure not to damage the mount due to being out of

alignment with the hinge at this point. Do this by watching as you close the door for

any contact between the mount and the top and bottom hinge covers.

10) Eye-Up the mount from the side of the FJC and adjust it by rotating a hair up or down

so that the angle matches the top and bottom hinge covers.

11) Tighten the SS-Nut so that the mount is stable and will not rotate out of position. The

bolt on the mount looks small, but it is a grade 8 bolt and is plenty strong enough to

hold the mount in place, and the rough surface coating on the hinge works as a grip

Congratulation !!! You just installed your "Bandi Mount" !!!
